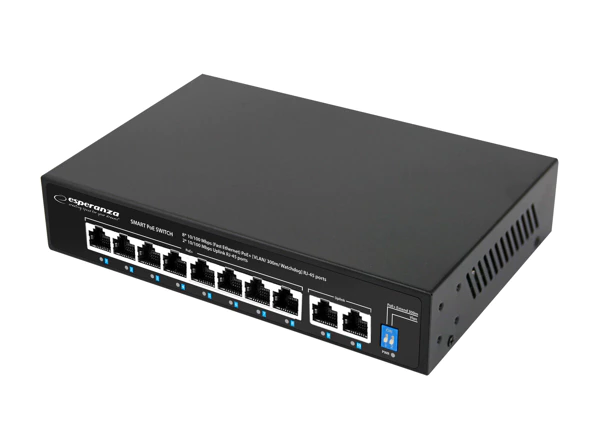

10-port 10/100 PoE switch, 96 W spotter

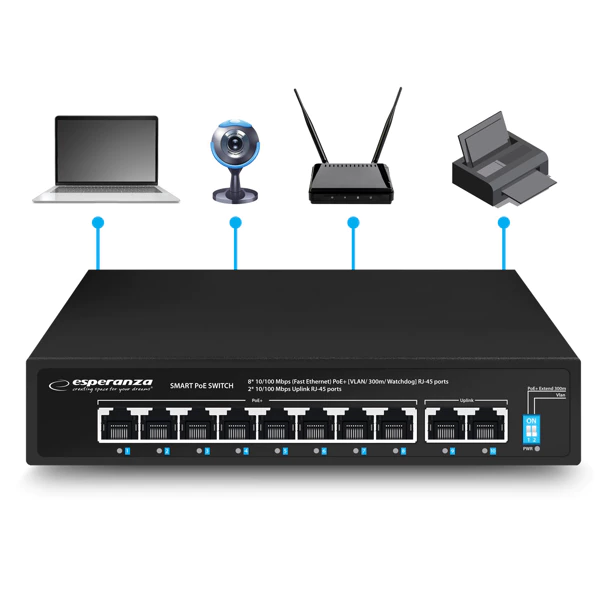

Esperanza SPOTTER This functional 8xPOE 2xUplink switch is designed for IP surveillance. It allows data and power transmission up to 300m, making it ideal for surveillance systems. No configuration is required. It is ideal for small to medium sized surveillance systems. Its automatic functions simplify installation and use. Compact network switch with all features DATA FLOW CONTROL Support for self-learning and updates for Mac DEDICATED TO MONITORING Ports: 8xRJ45 PoE 10/100 Mbps + 2xRJ45 uplink with automatic link speed detection Automatic patch: MDI / MDIX Supported protocols: IEEE 802.3 10BASE-T, IEEE 802.3u 100Base-TX, IEEE 802.3x, IEEE802.3i 10Base-T Ports 1 to 8 support the following standard: IEEE 802.3af/at Transmission Type: Storage and Forwarding Packet transfer speed: 1.488 Mpps Capacity: 2.0 Gbps Buffer: 1.25M MAC Address Table: 4K PoE and network LED indicator Twisted pair transmission: 10BASE-T: Cat5 UTP (≤ 300 m) 100BASE-TX: UTP Cat5 or later (≤ 100 m) Built-in switch (no power restart required): Extend: AI extends transmission distance up to 300m VLan: Enabled, 1 to 4 ports support each port and VLAN isolation Supports Watchdog by default: 1 to 4 ports support AI-PoE self-healing Maximum/average power per port: 30 W / 15.4 W Total power: 96 W Power PIN: 1/2(+), 3/6(-) Power consumption: standby: < 4 W full load: 96 W Integrated power supply: 220-240 V / 50 Hz Cable length: 1 m Operating temperature: -20℃ ~ 55℃ Storage temperature: -40℃ ~ 75℃ Operating air humidity: 5% ~ 90%, non-condensing Storage humidity: 5% ~ 95%, non-condensing Dimensions: 195 x 135 x 40 [mm]
